Product Details

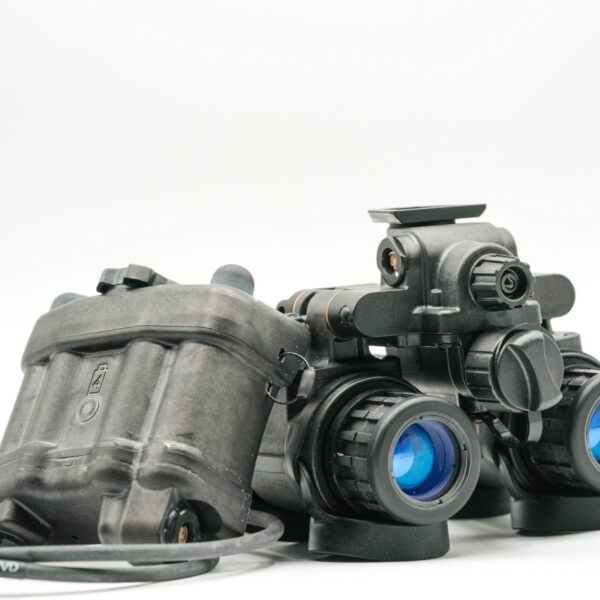

Extremely lightweight binocular night vision goggled developed with for SOCOM to replace the PVS 15 variant designed for high resolution, lightweight and articulation. The system can run a AA battery or an external battery pack with up to 50 hours of operation time also the system is equipped with an IR strobe the articulating pods allowed dual tube abuse single tube abuse or a low profile style so there is no need to flip the system to the top of the helmet. FEATURES-the system has a manual gain and focus adjustments with optional diopter lenses and articulating binocular housing with independent pods and auto shut off when stowed and LED low battery indicators compatible with all dovetail helmet mounts.Characteristics
| Dimensions | 4.7 in. L x 4.2 in. W x 3.4 in. H | |
| Weight | < 450 g (0.99 lb.) with AA Lithium battery installed (no accessories) | |
| Battery Type | (1) AA Lithium | |
| Battery Life | ≥ 8 hrs. on (1) AA Lithium battery (avg. 16 hrs. at 25 °C (77 °F)) ≥ 24 hrs. on (4) AA Lithium batteries with optional 4-cell battery pack (avg. 50 hrs. at 25 °C (77 °F)) | |
| Field-Of-View | 40° ± 2° deg. (circular) | |
| Objective Focus | 18 in. (45 cm ± 3 cm) to infinity | |
| Eyepiece Diopter | -0.5 ± 0.1 (factory setting) adjustable from +2.0 to -2.0 with optional diopter lenses | |
| Image Intensification | U.S. manufactured MX-11769 Gen III variable gain tubes | |
| Waterproof | 66 ft. immersion for 2 hrs | |
Key Features
- Manual system gain and focus adjustments for custom image quality optimization
- Lightweight ergonomic design reduces head-borne weight and decreases neck strain
- Optional diopter lenses optimize operator preference for visual acuity
- Rotating binocular design allows low profile against helmet when in stowed position and the option to use as a single monocular
- Works with currently fielded dovetail helmet mounts
- Auto OFF when stowed; resumes power when deployed
- LED indicators in left and right monocular alert the operator when the BNVD has no less than 10 minutes of battery life remaining
- Replaceable/upgradeable I2 tube assemblies
