Product Details

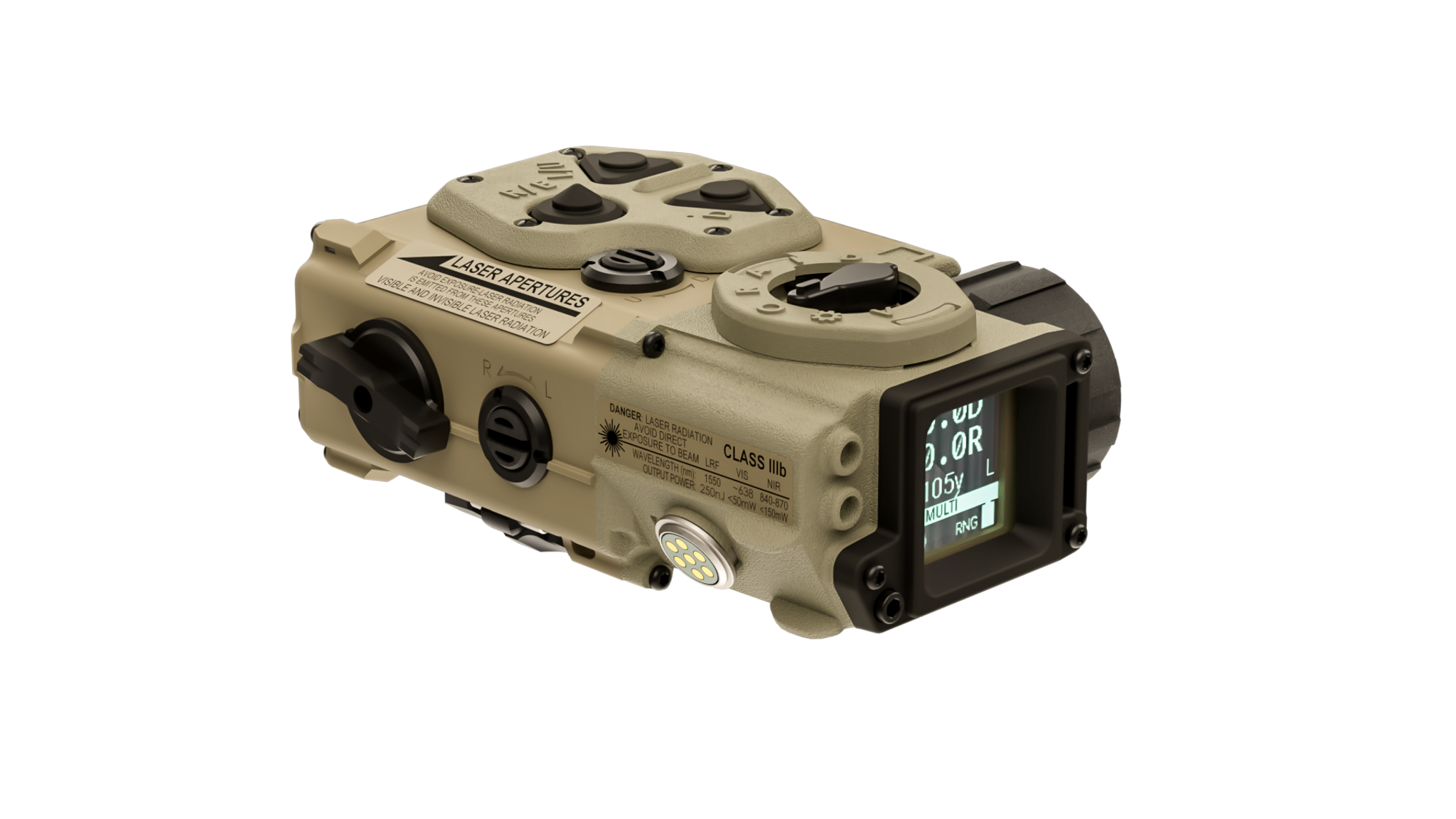

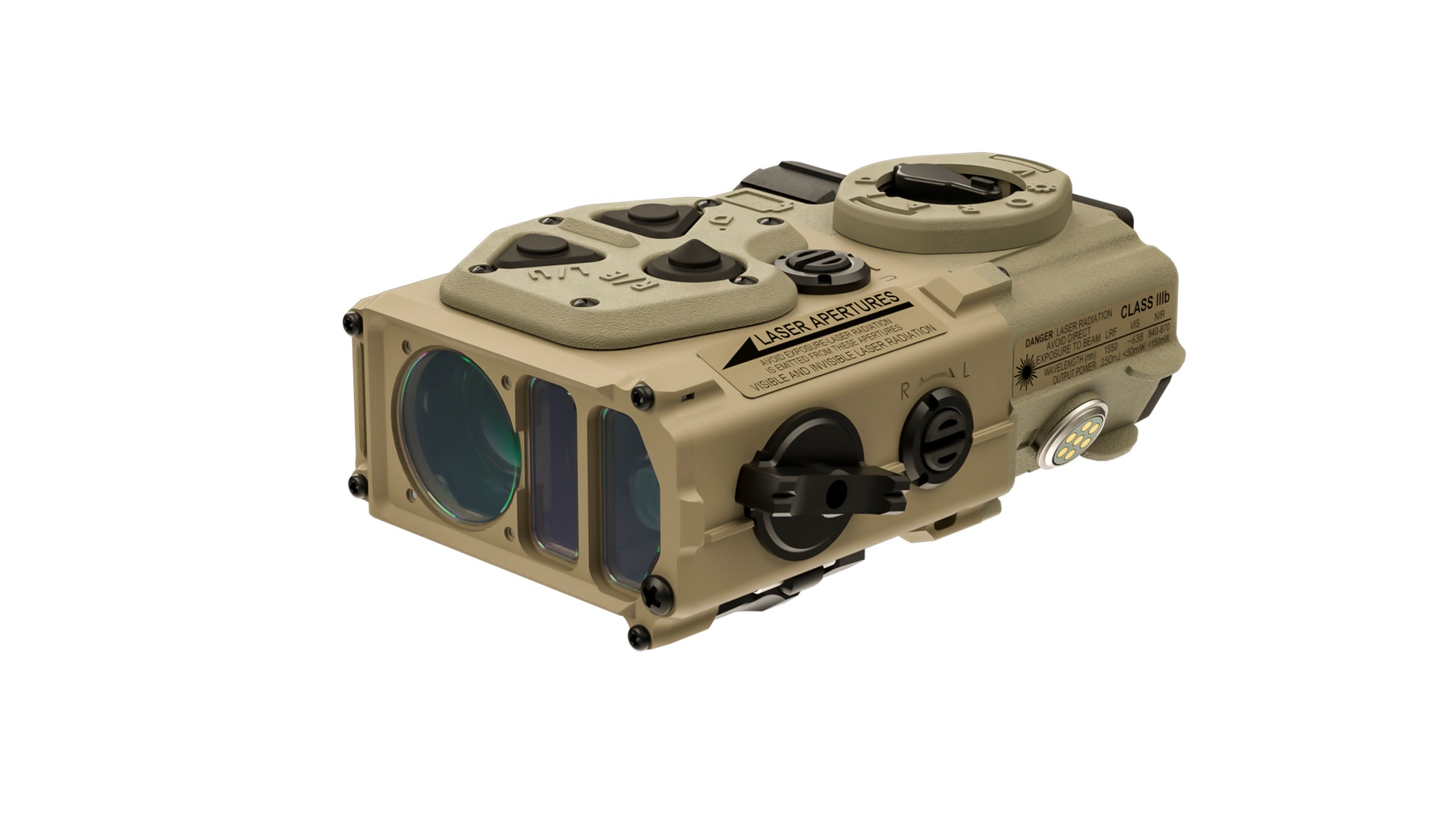

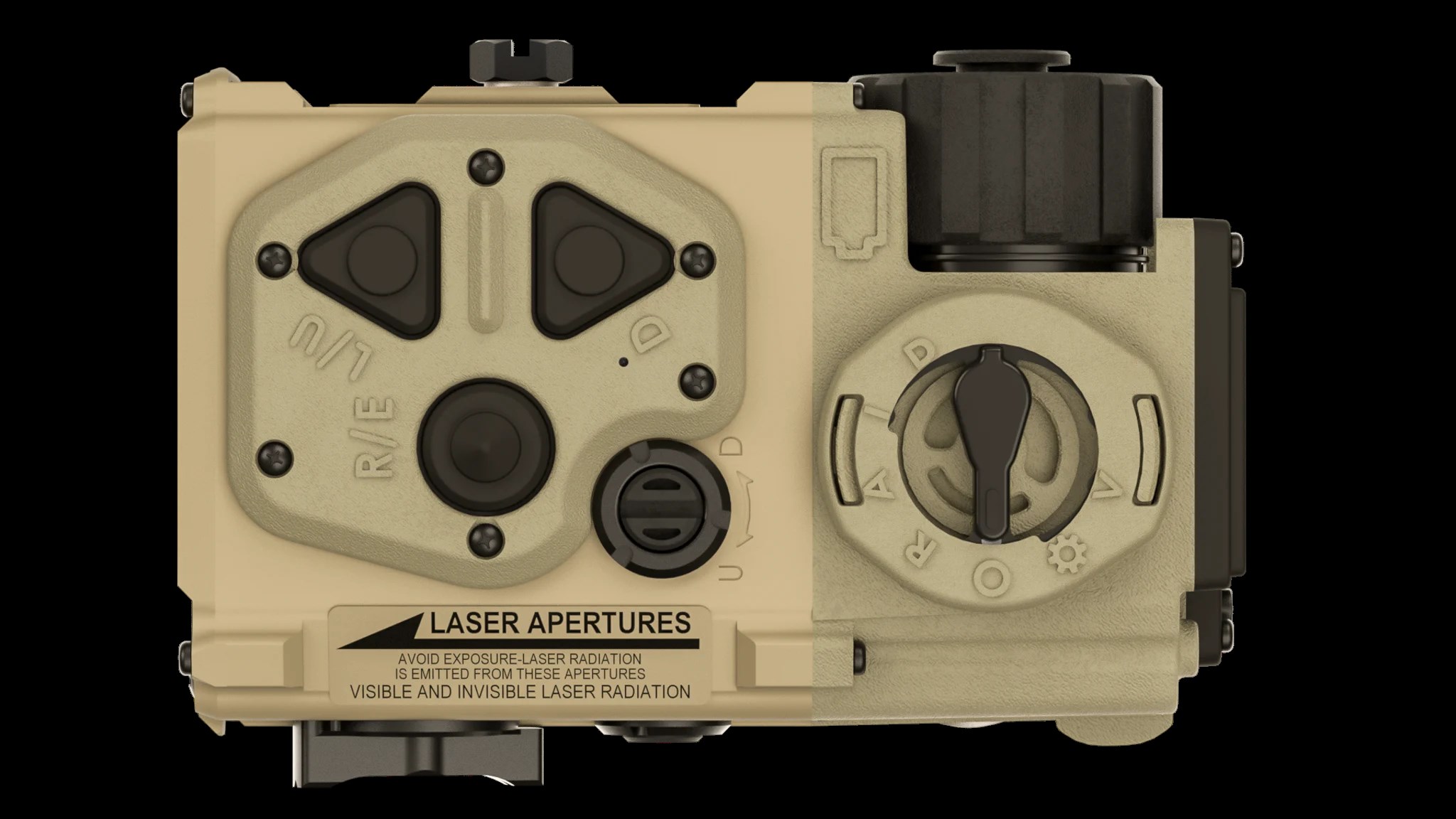

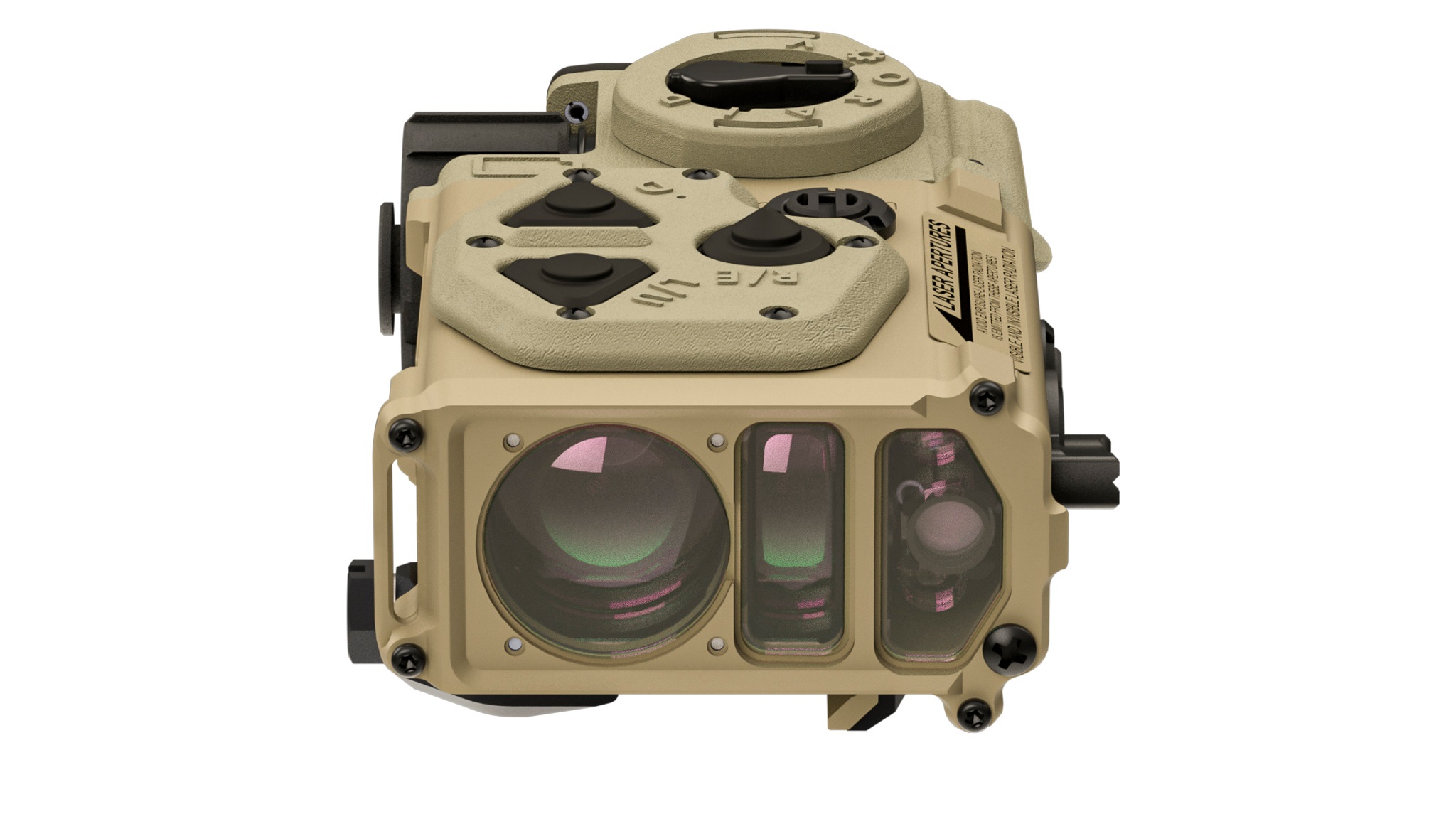

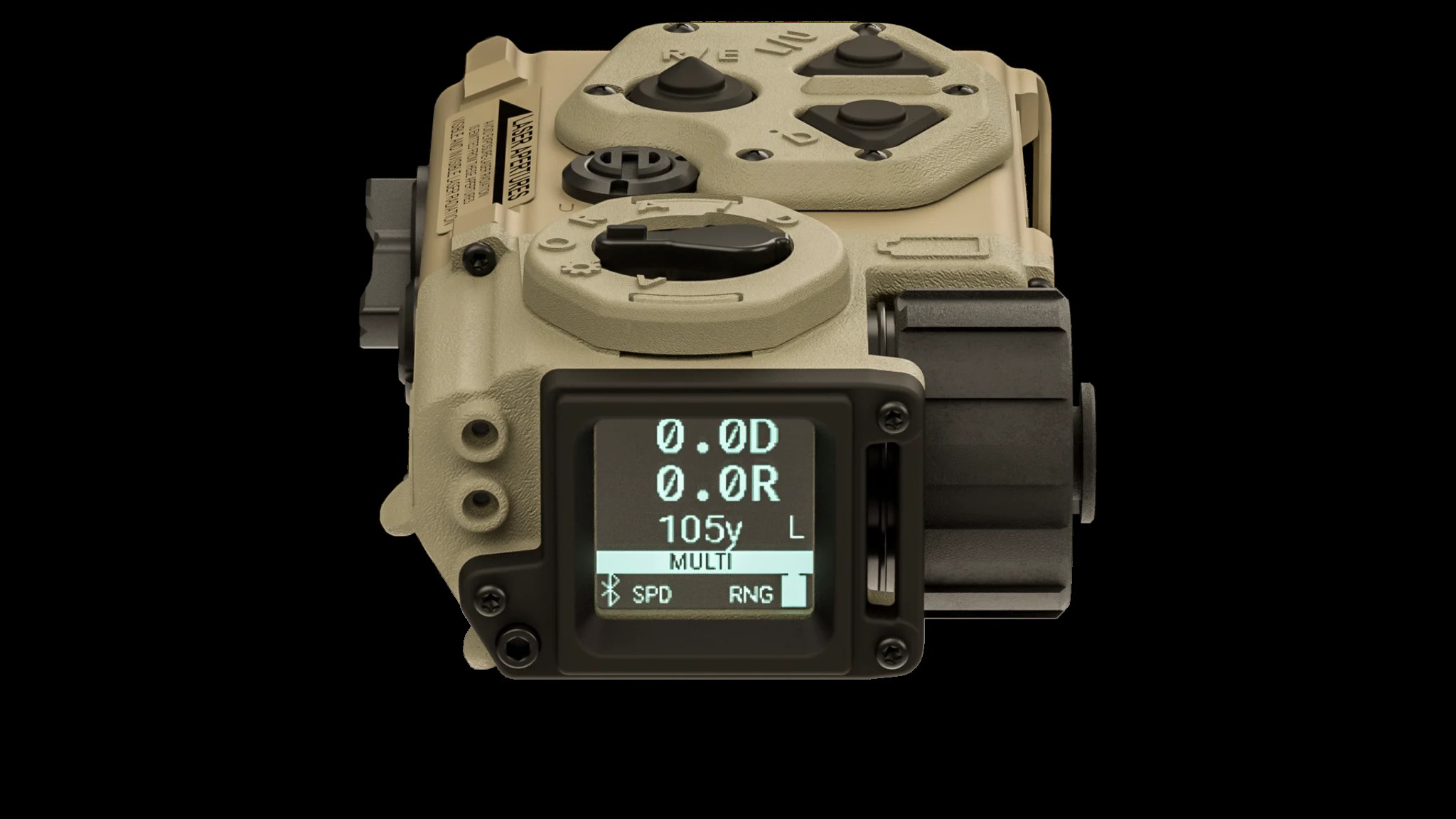

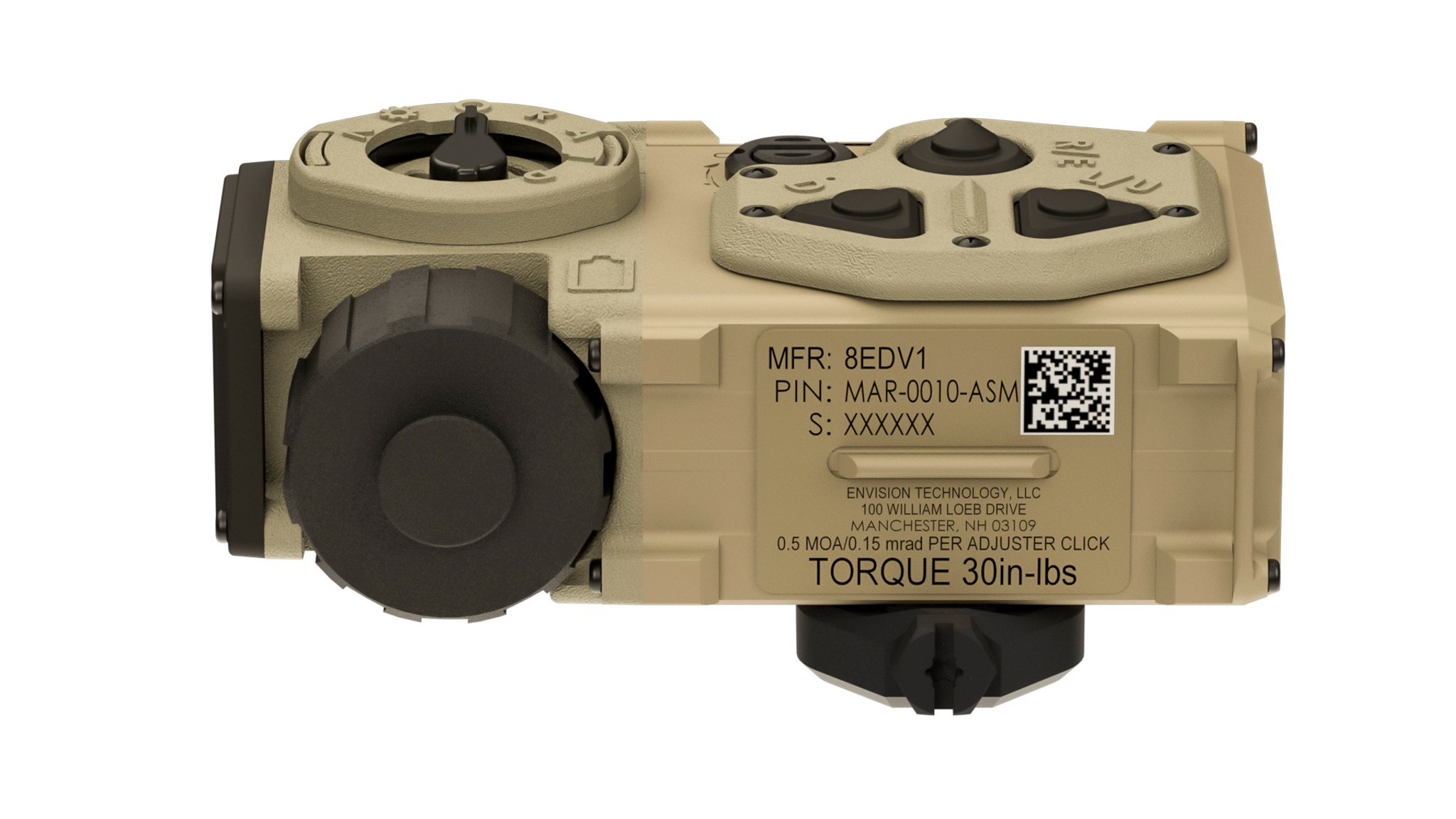

The Envision Technology MARS (Miniature Advanced Rangefinder System) is an ultra-compact, weapon-mounted system that combines a laser rangefinder, ballistic solver, and aiming/illumination tools into one lightweight unit (under 8 oz). It uses a Class 1 1550nm laser capable of ranging over 2,000 meters (1,500+ meters on man-sized targets) and features an integrated Applied Ballistics solver that provides real-time elevation and wind corrections based on stored weapon profiles and environmental data. The MARS also includes visible and IR aiming lasers, plus an adjustable IR illuminator for full day/night capability. Multiple ranging modes (Speed, Precision, Scan) and advanced return logic improve accuracy in complex environments, while haptic feedback confirms hits without breaking focus. Additional features include an auto-rotating display, intuitive controls, Bluetooth connectivity (e.g., Kestrel integration), and built-in environmental sensors. Powered by a single CR123A battery with 2,000+ activations, it’s rugged, waterproof, and designed for reliable performance across extreme conditions.Characteristics
| LRF | 1550nm, Class 1 >1,500m on 10% reflective man-size target >2,000m on 30% reflective NATO target |
| Weight | Without Battery: 6.6oz (187g) With Battery: 7.2oz (204g) |
| Dimensions | L: 3.7" (96mm) with lens cover deployed W: 2.7" (68mm) with lens cover stowed H: 1.4" (35mm) above rail |
| Power | Single CR123A Battery |
| Mounting Interface | MIL-STD-1913 Rail Grabber |
| Wireless Interface | 2-Way Bluetooth |
| Ballistic Computer | Applied Ballistics®, Integrated |
| Modes | Speed, Precision, Scan (rapid) |
| Visible Pointer | |
| Output Power | 3.5mW (low) Class 3R 38mW (high) Class 3B ±20% |
| Divergence | 0.5mR (±0.3mR) |
| Wavelength | ~640nm @ 20°C |
| NIR Pointer | |
| Output Power | 0.45mW (low) Class 1 25mW (high) Class 3B ±20% |
| Divergence | 0.5mR (±0.3mR) |
| Wavelength | ~850nm @ 20°C |
| NIR Illuminator | |
| Output Power | 5.0mW (low) Class 1 105mW (high) Class 3B ±20% |
| Divergence | 1 – 6 degrees (±20%) |
| Wavelength | ~860nm @ 20°C |
