Product Details

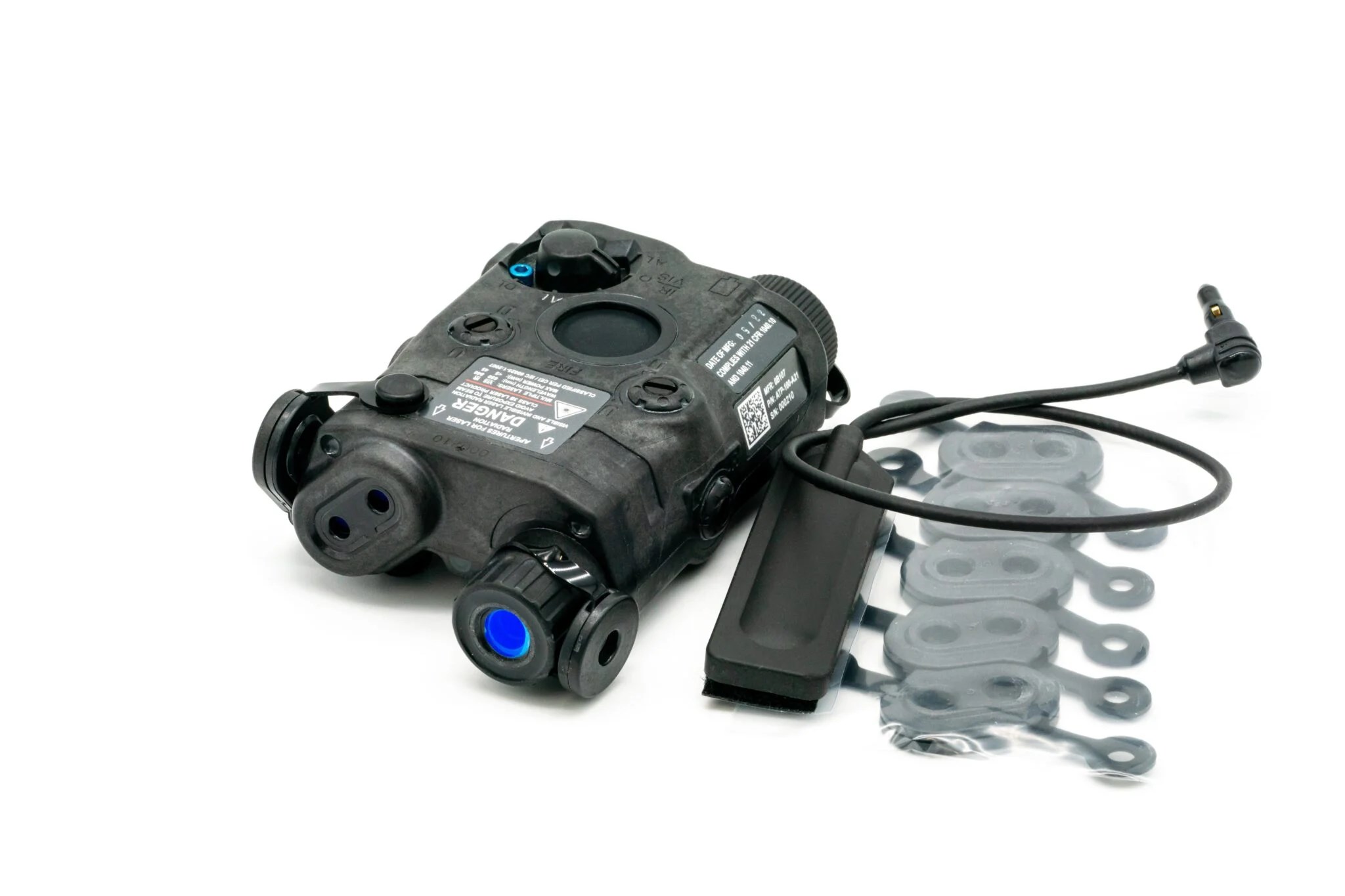

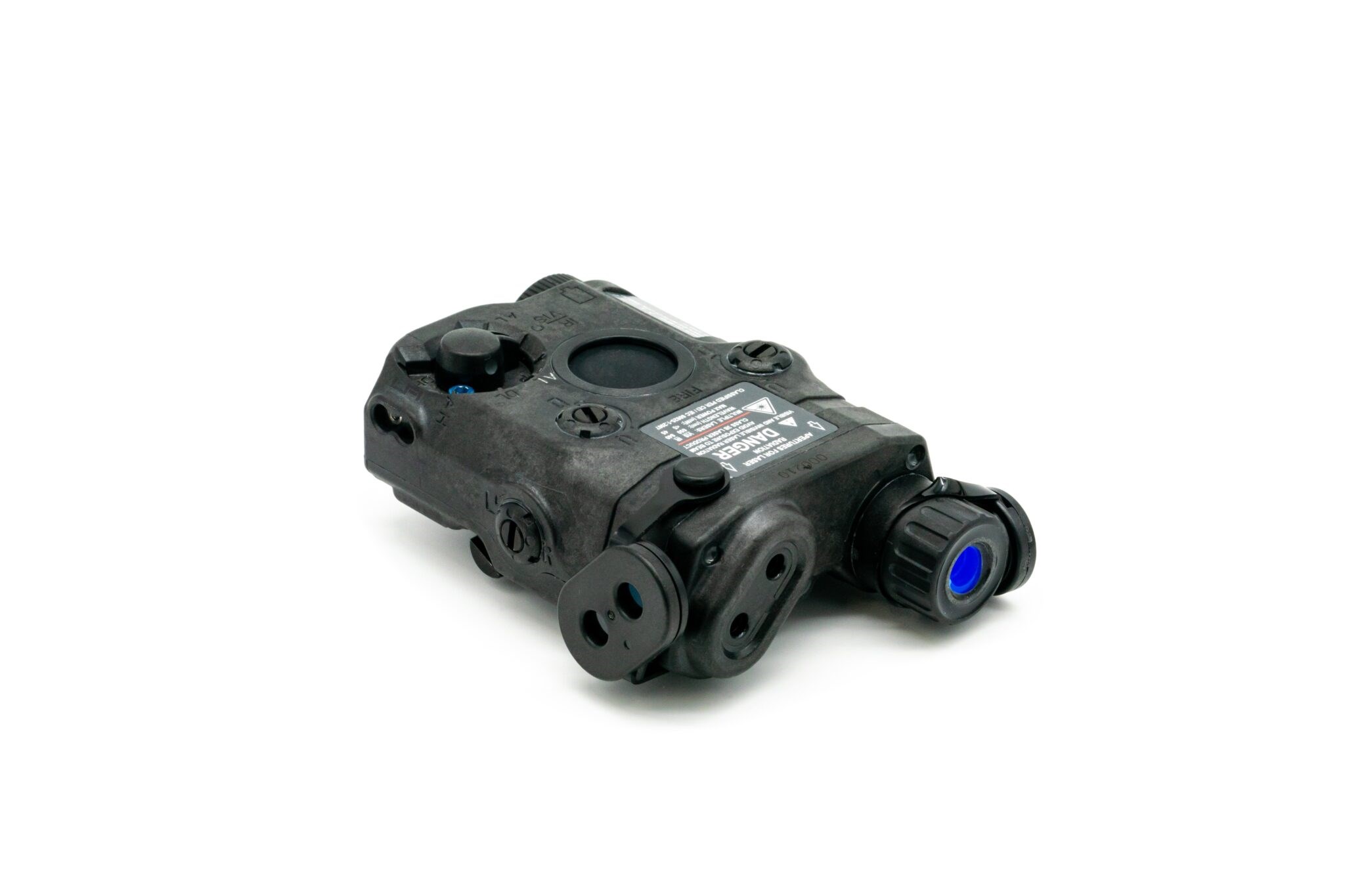

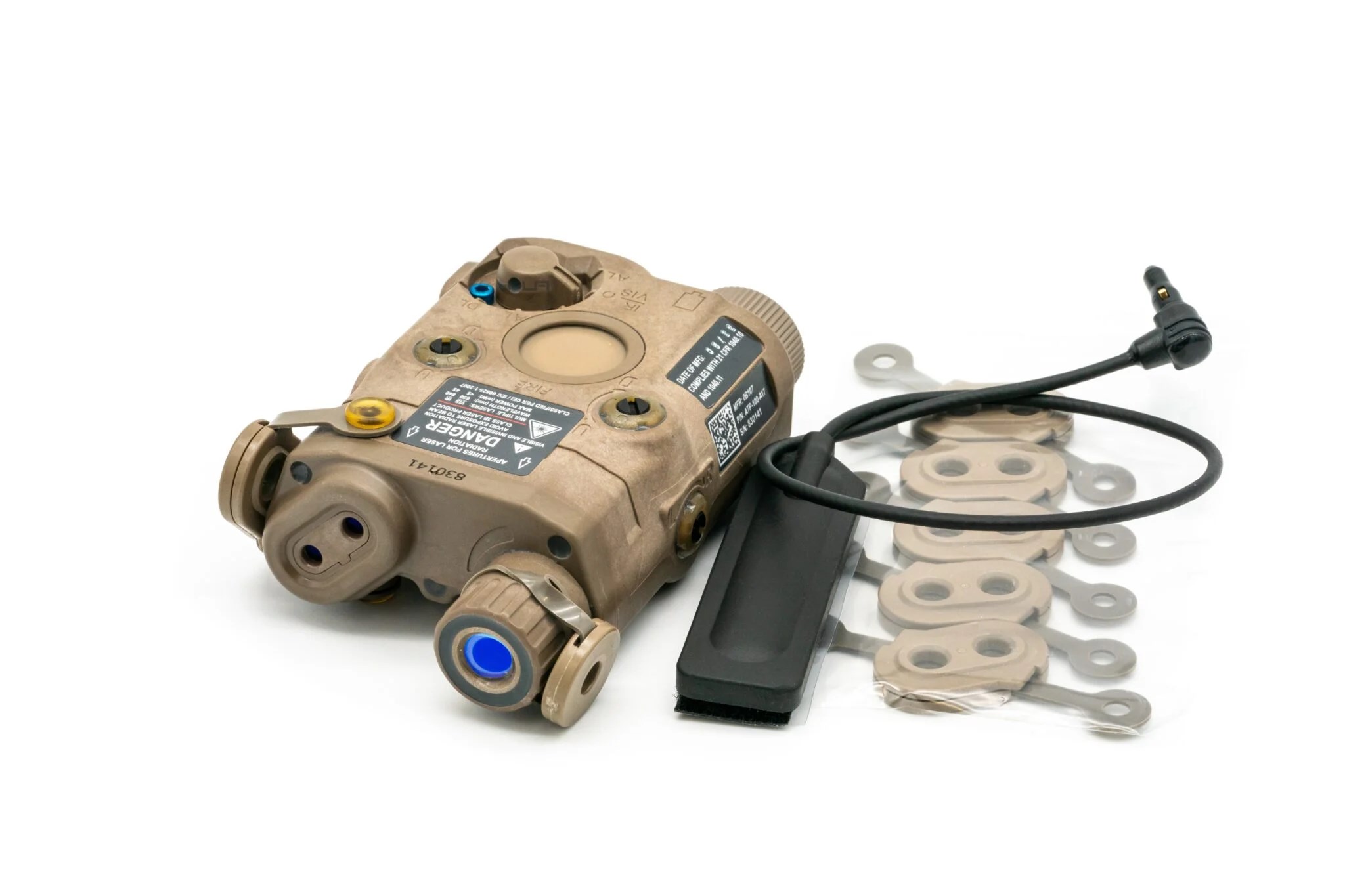

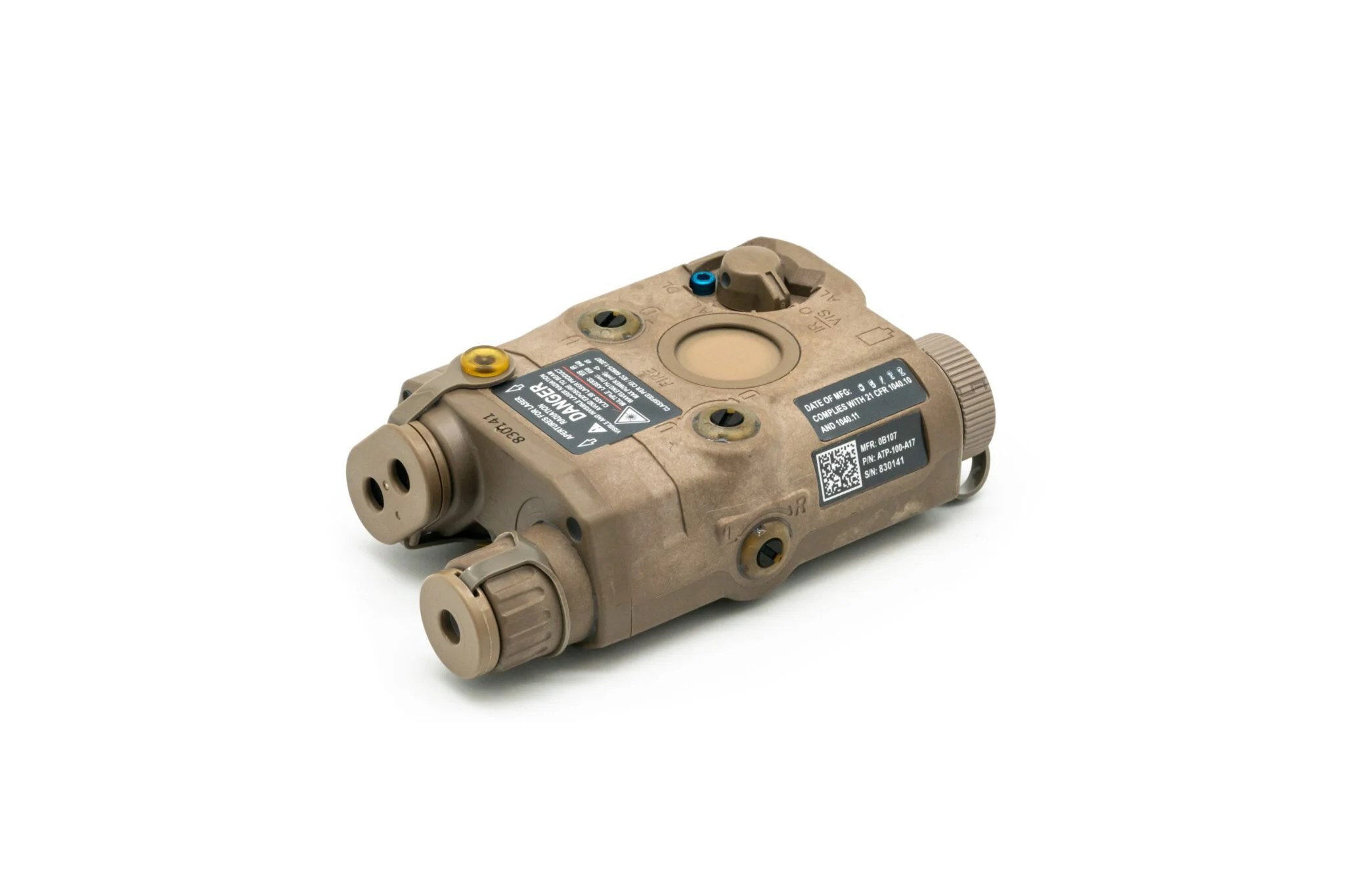

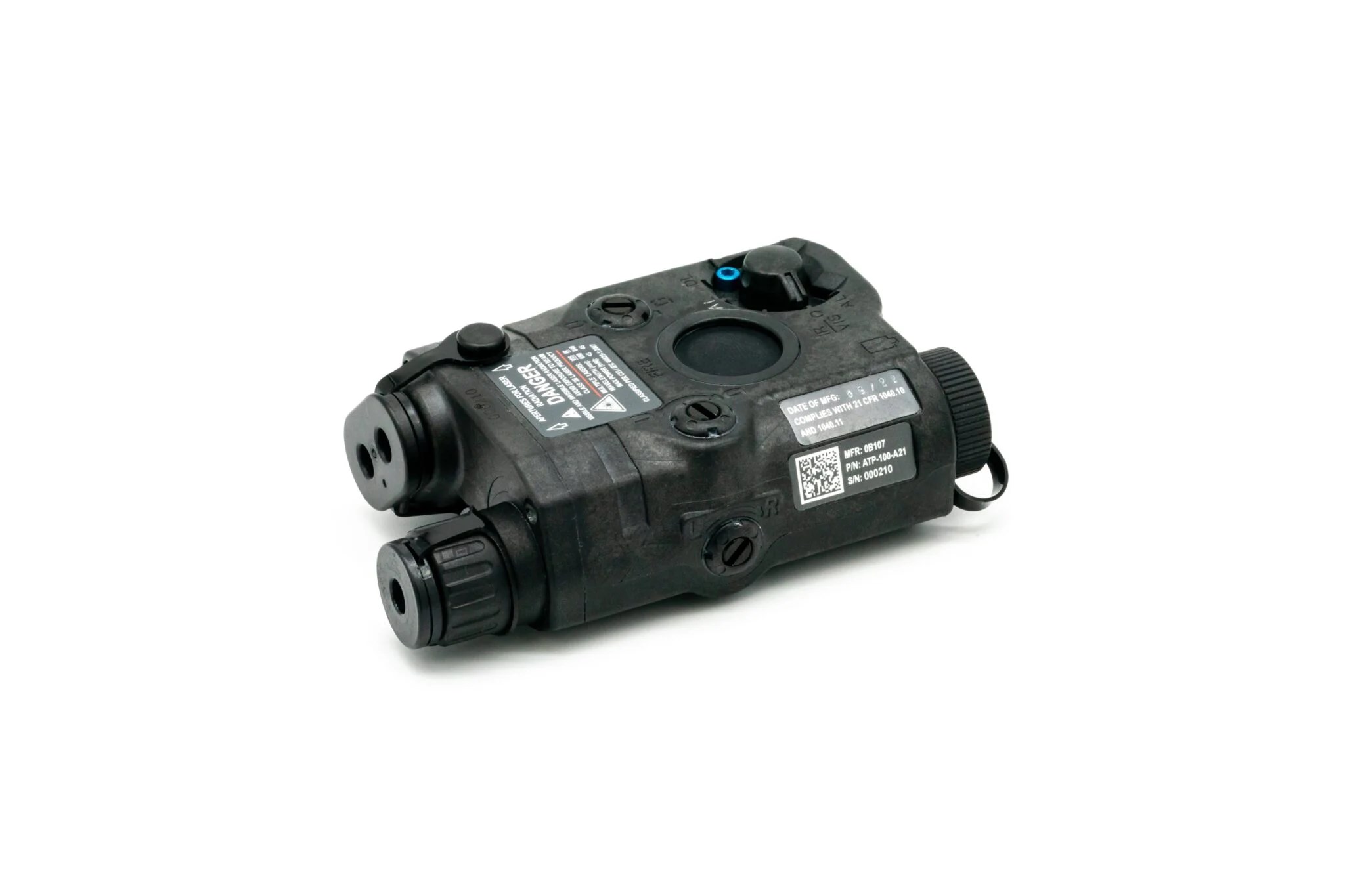

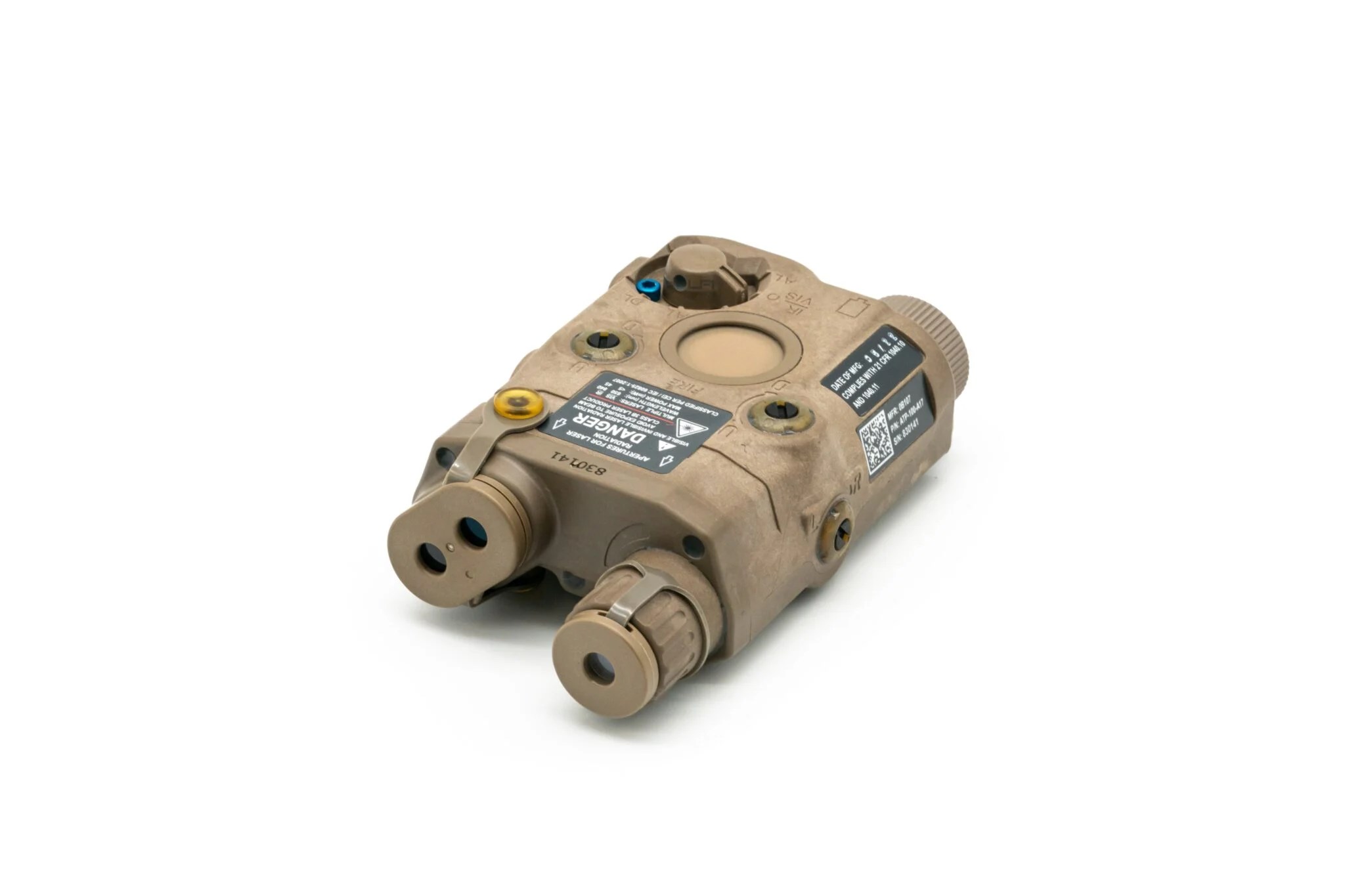

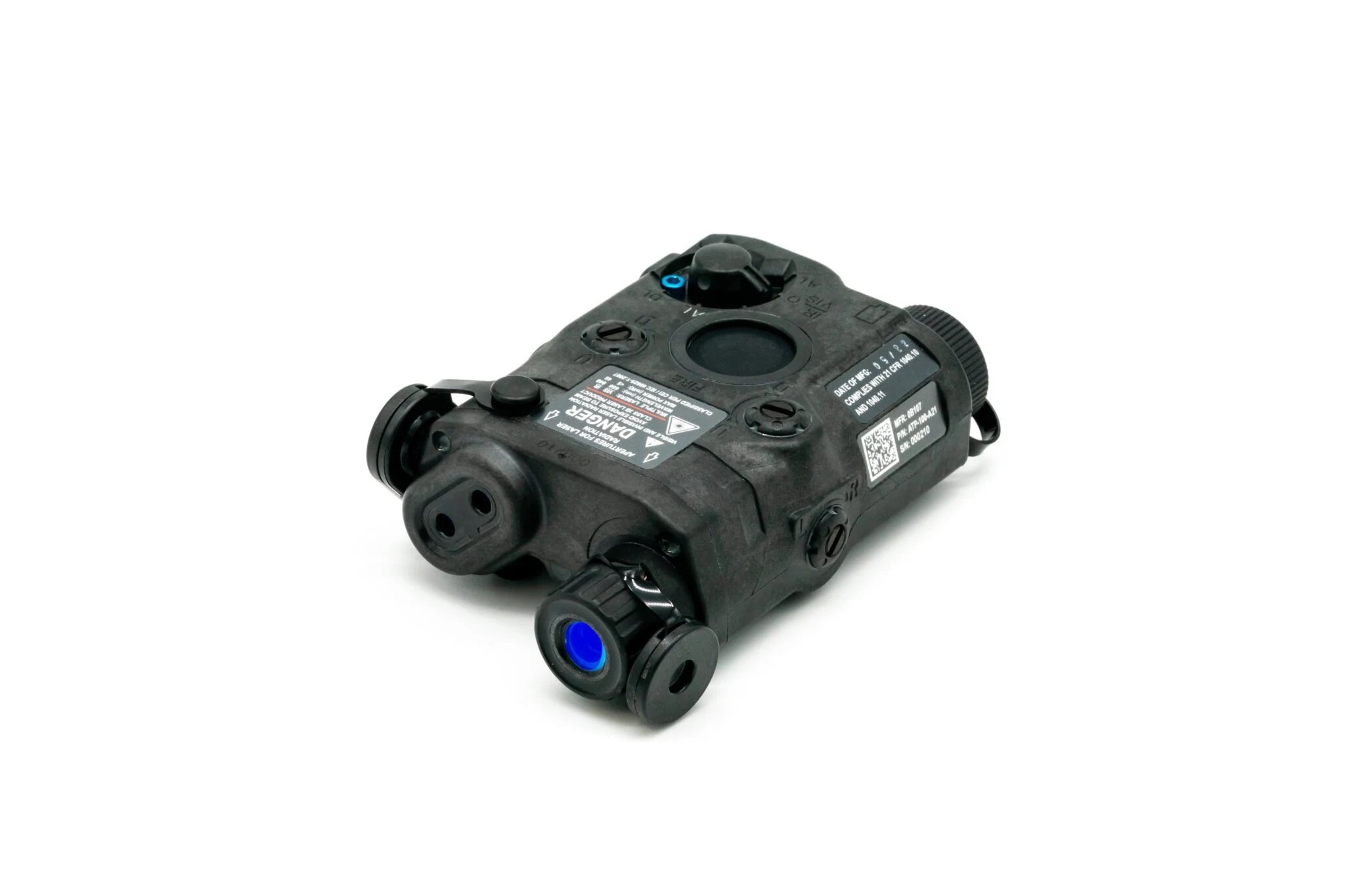

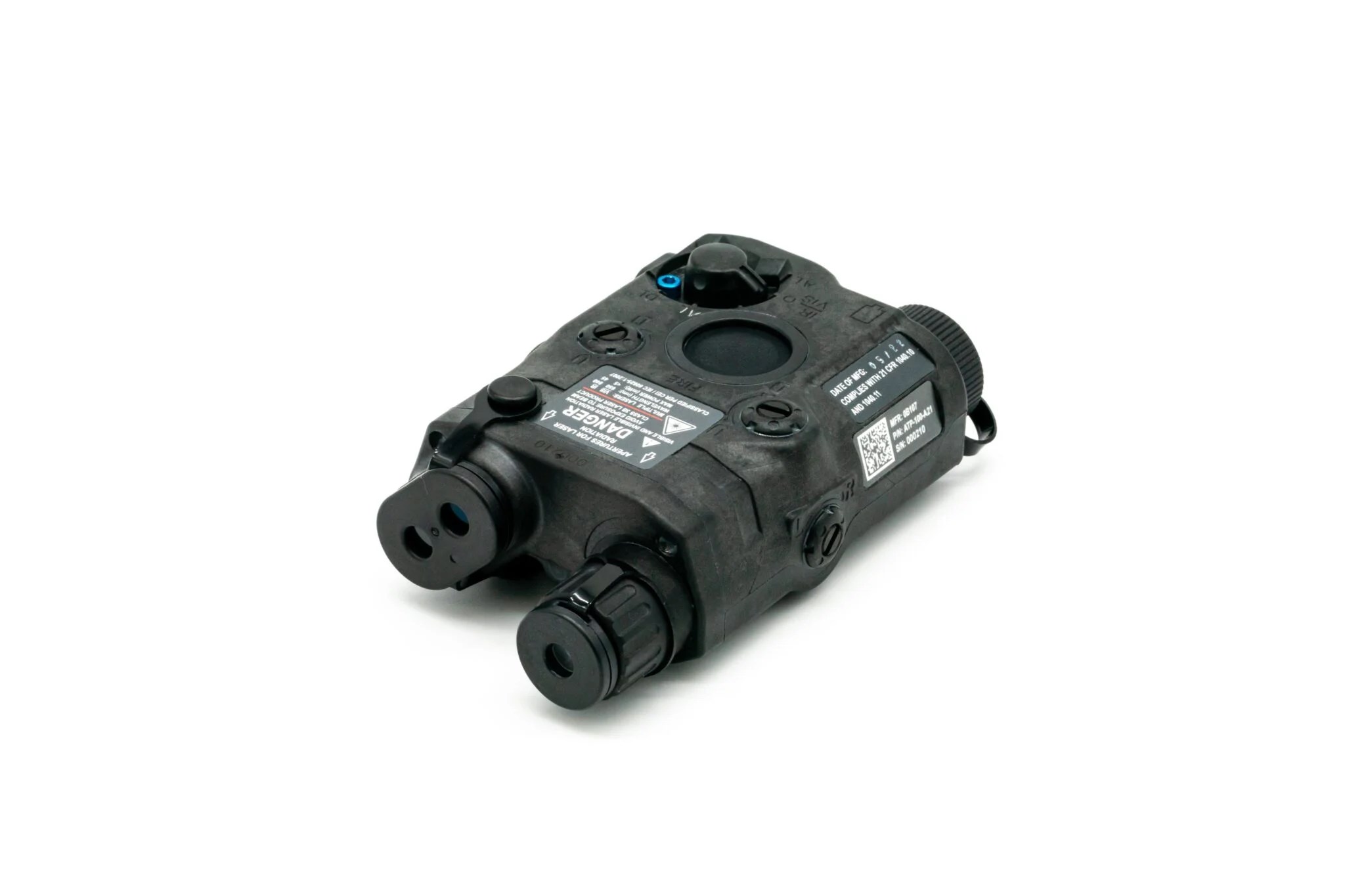

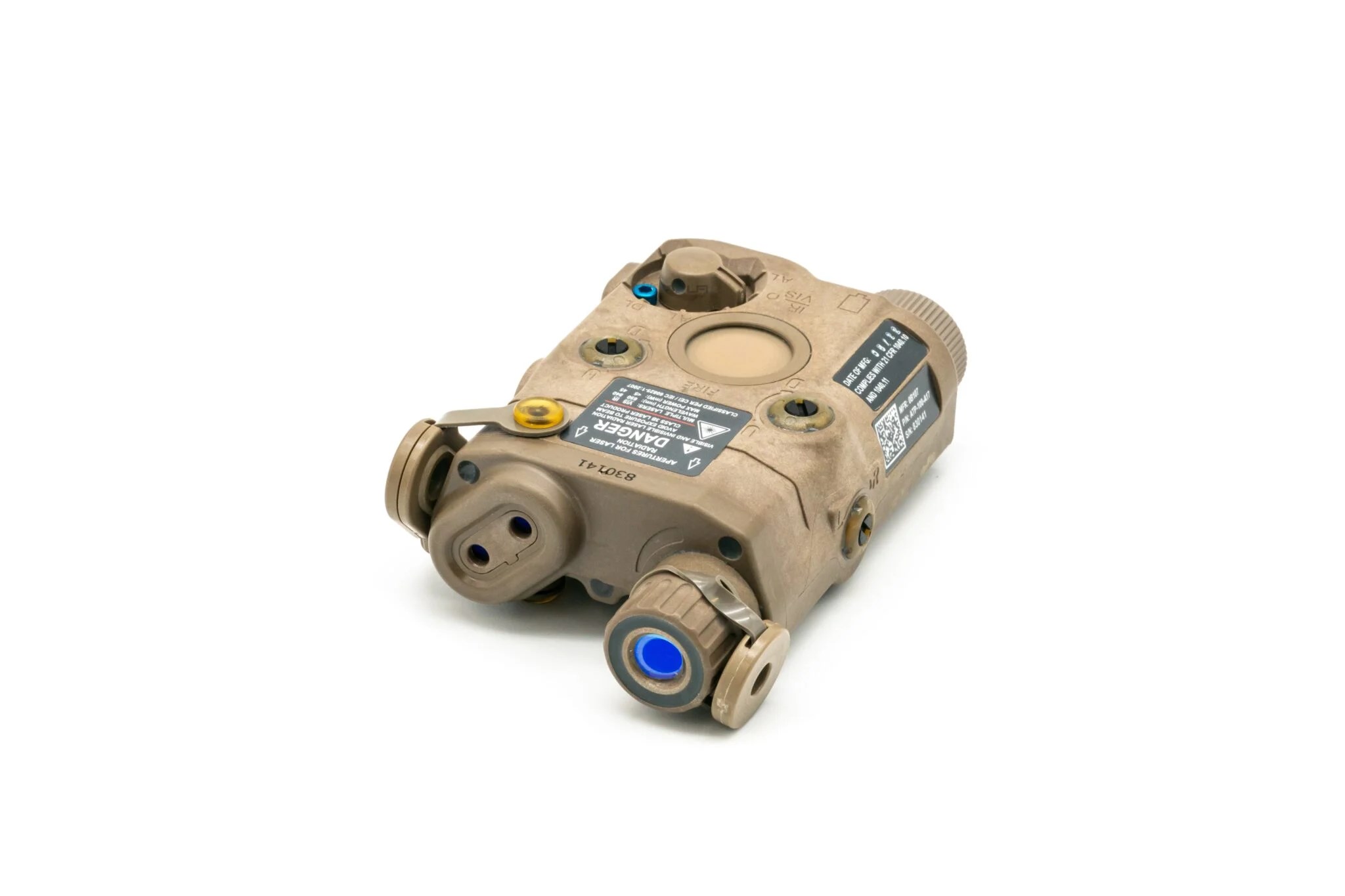

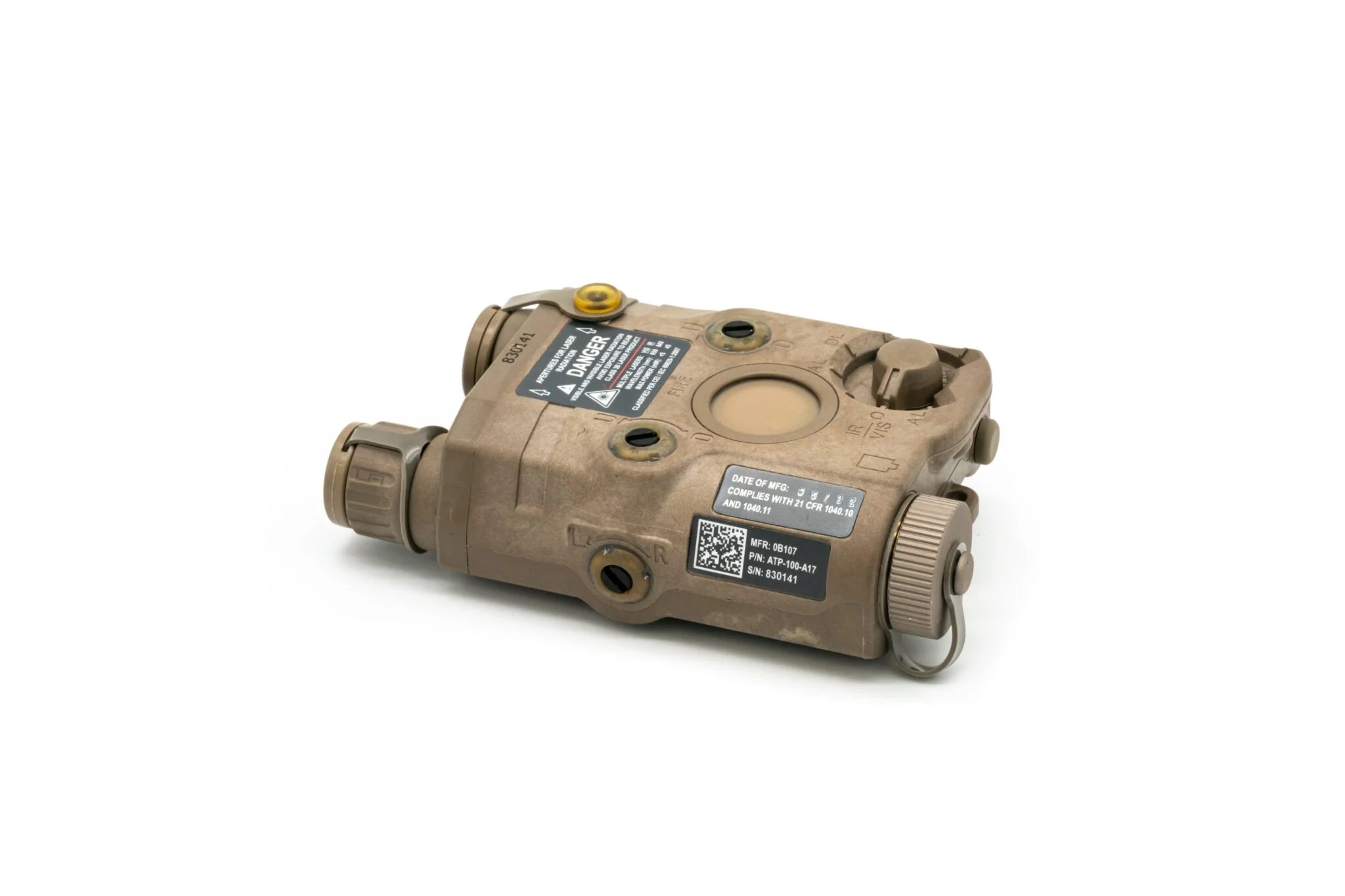

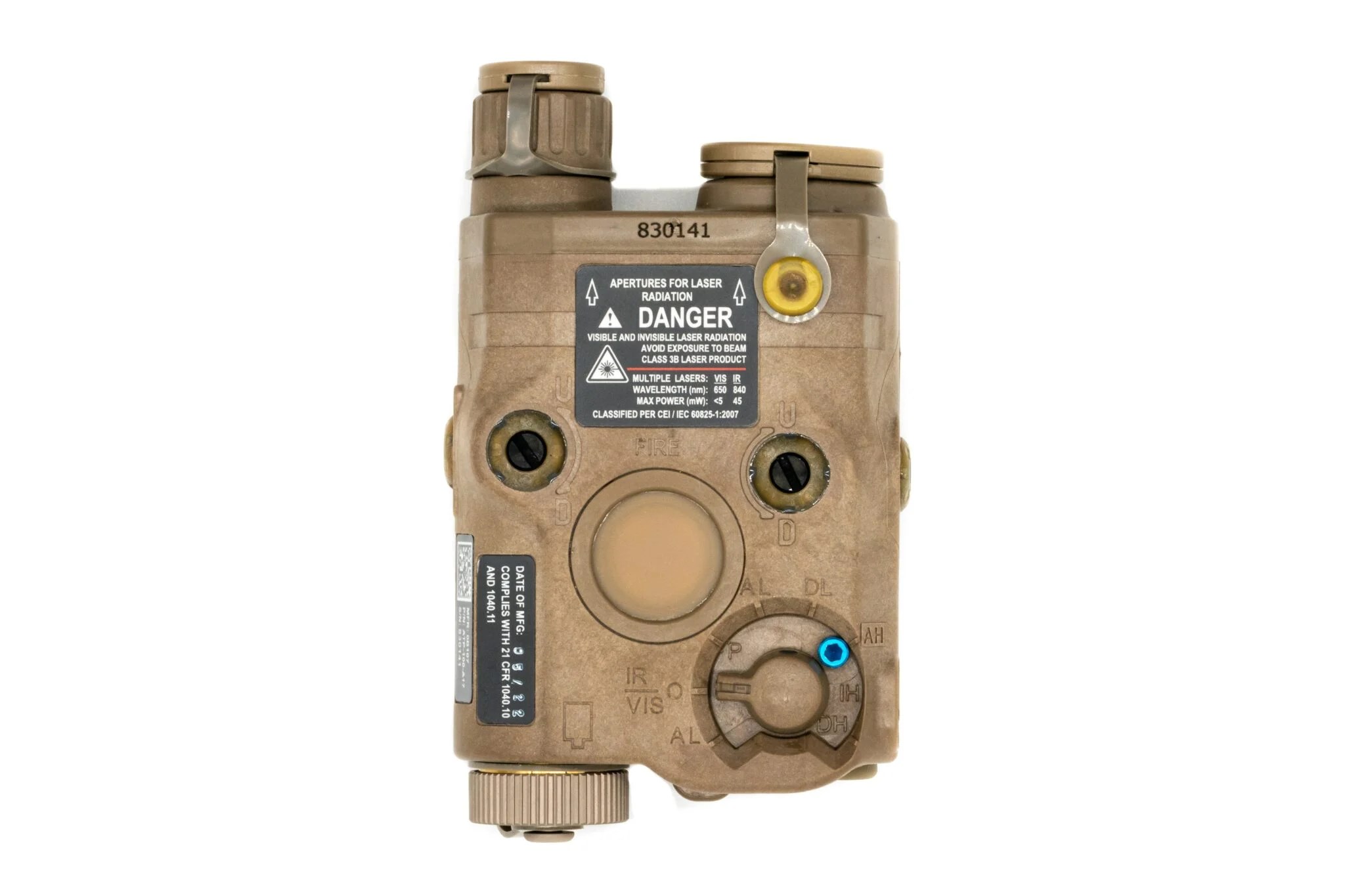

The AN/PEQ-15 (ATPIAL) is a weapon-mounted laser system that provides a visible laser, IR laser, and IR illuminator for use with night vision. It features slaved visible and IR lasers, allowing users to zero the visible laser during the day while maintaining alignment with the IR laser for nighttime use. The illuminator can be adjusted independently to center the beam around the aiming laser. The unit mounts to a standard Picatinny rail and has a low-profile design that works with most optics. It uses flush-mounted windage/elevation adjustments. Controls include a top-mounted selector dial and fire button for easy operation, along with a rear battery compartment that allows battery changes without removing the unit. --Characteristics
| Dimensions | 4.6 in. L x 2.8 in. W x 1.6 in. H | |
| Weight | 7.5 oz. with battery | |
| Battery Type | (1) 3 Volt Lithium | |
| Battery Life | >6hrs. in Dual High at 25°C(77°F) | |
| Visible Aim Laser | Specifications at 25 °C (77 °F) | Safety Class |
| Output Power | 5.0 mW (max) | 3B |
| Beam Divergence | 0.5 (± 0.3/- 0.39) mrad | |
| Wavelength | 635 (±15) nm | |
| IR Aim Laser | Specifications at 25 °C (77 °F) | Safety Class |
| Output Power Low | 700 uW | 3R |
| Output Power High | 27.5 mW (max) | 3B |
| Beam Divergence | 0.5 (± 0.3/- 0.39) mrad | |
| Wavelength | 835 (± 15) nm | |
| IR Illuminator | Specifications at 25 °C (77 °F) | Safety Class |
| Output Power Low | 3.5 mW (max) | 3B |
| Output Power High | 45 mW (max) | 3B |
| Beam Divergence | Adjustable from approximately 1 mrad to > 105 mrad | |
| Wavelength | 835 (± 15) nm | |
Key Features
- Co-aligned visible and infrared lasers
- Hardened for use on small arms and crew-served weapons
- Integral Rail-Grabber interface
- Retains zero within 0.5 mrad
- Meets military environmental specifications
