Wilcox RAPTAR-Xe (Rapid Targeting & Ranging Module)

In Stock (10) Out of Stock
0/5

**Available only for Law Enforcement / Government Purchasing only**
PLEASE CONTACT US FOR PRICING / TO ORDER

Brand:

Wilcox

Category:

Lasers & Laser Rangefinders

Weight:

0.00 oz
Request A Quote
for Wholesale & Dealer Pricing

Delivery

Free standard shipping on orders over $2,000 before tax.

Return

All sales are final.

Share:

visa master card

Product Details

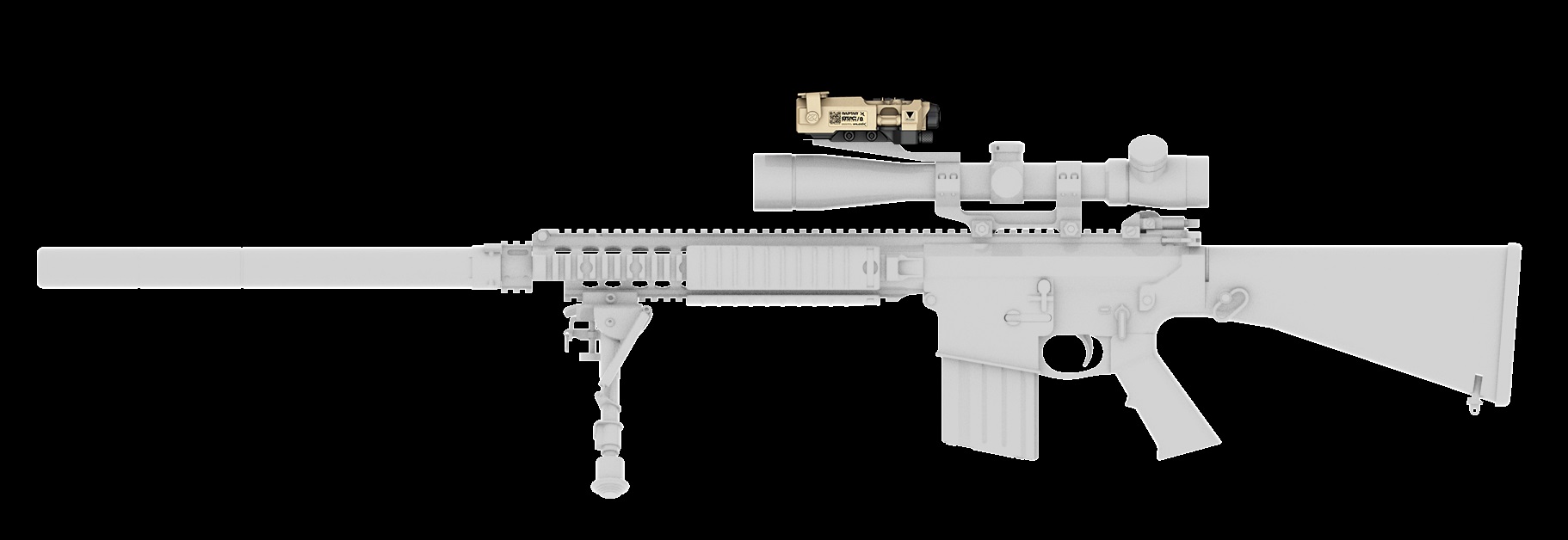

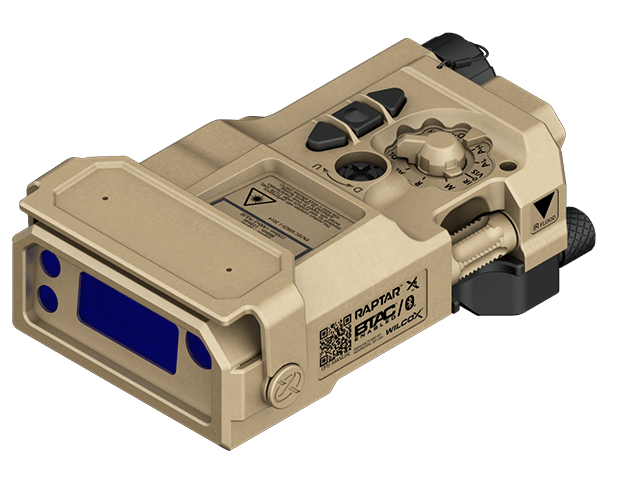

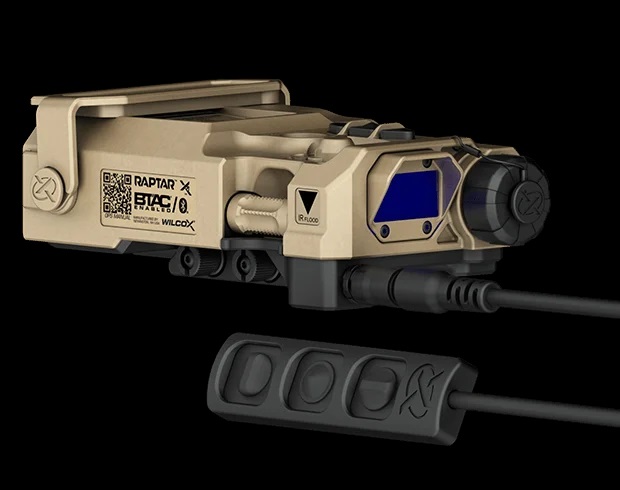

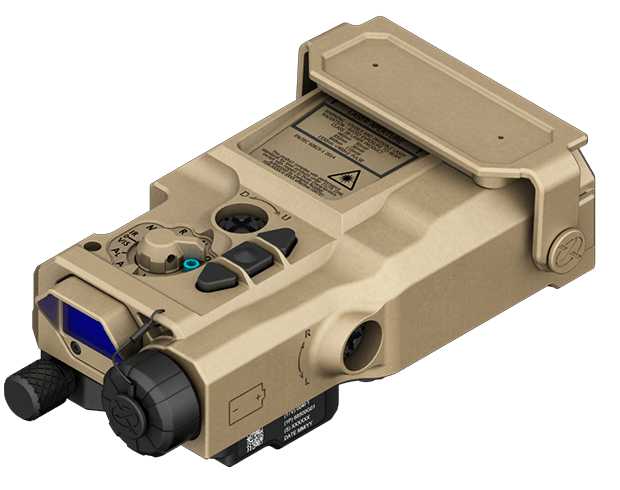

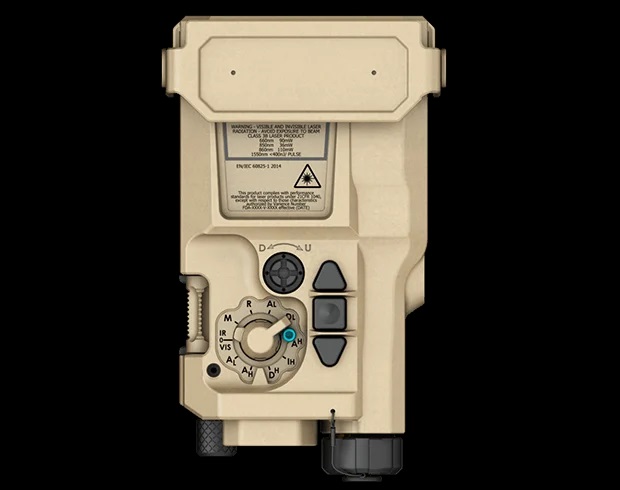

The Wilcox RAPTAR Xe™ is a compact, high-power (Class 3B) laser aiming system designed for military and law enforcement precision shooters. It integrates multiple capabilities into a single unit, including a visible red laser, NIR aiming laser, variable NIR VCSEL illuminator, and a laser rangefinder—all housed in one optical system. Smaller, lighter, and stronger than earlier models, it enhances first-round hit probability at extended ranges. The onboard ballistic computer calculates real-time firing solutions using environmental data like temperature, pressure, humidity, inclination, and heading, with wind input added manually or via Bluetooth. It features a large OLED display showing solutions in Mils, MOA, or inches, along with auto brightness adjustment. Controls include onboard inputs and a remote keypad for customizable operation. Powered by a single CR123 battery and mounted via Picatinny rail, the RAPTAR Xe is a fully integrated, mission-ready system for long-range precision and target engagement.

Characteristics

Dimensions4.6 in. L x 2.8 in. W x 1.6 in. H
Weight7.5 oz. with battery
Battery Type(1) 3 Volt Lithium
Battery Life>6hrs. in Dual High at 25°C(77°F)
Visible Aim LaserSpecifications at 25 °C (77 °F)Safety Class
Output Power5.0 mW (max)3B
Beam Divergence0.5 (± 0.3/- 0.39) mrad
Wavelength635 (±15) nm
IR Aim LaserSpecifications at 25 °C (77 °F)Safety Class
Output Power Low700 uW3R
Output Power High27.5 mW (max)3B
Beam Divergence0.5 (± 0.3/- 0.39) mrad
Wavelength835 (± 15) nm
IR IlluminatorSpecifications at 25 °C (77 °F)Safety Class
Output Power Low3.5 mW (max)3B
Output Power High45 mW (max)3B
Beam DivergenceAdjustable from approximately 1 mrad to > 105 mrad
Wavelength835 (± 15) nm

Key Features

  • Co-aligned visible and infrared lasers
  • Hardened for use on small arms and crew-served weapons
  • Integral Rail-Grabber interface
  • Retains zero within 0.5 mrad
  • Meets military environmental specifications
