Product Details
The Envision Technologies RAIL (Rail-Mounted Aiming/Illumination Laser) is a compact, lightweight system that combines visible and infrared aiming and illumination in one low-profile unit for Picatinny rail platforms. It includes a visible laser (red or green), IR aiming laser, adjustable IR illuminator, and a 180° wide-angle NIR flood for close-quarters use. The illuminator can be tuned independently without affecting laser zero, and all outputs offer selectable power levels for different conditions. Designed for simplicity and speed, it runs on a single CR123A battery and features intuitive controls, including programmable overrides, a multi-position mode dial, and an onboard OLED display for system feedback. Weighing under 6 oz, it maintains weapon balance while delivering a full-spectrum, mission-ready aiming and illumination solution. ---Characteristics
| Dimensions | 3.7 in. L x 2.4 in. W x 1.4 in. H |
| Weight | <6 oz. with battery |
| Battery Type | (1) CR123A |
| Mounting Interface | MIL-STD-1913 Picatinny Rail |
| Visible Laser Options | Green or Red |
| Visible Aim Laser | |
| Safety Class (Low/High) | 3R / 3B |
| Output Power Low | 4mW |
| Output Power High (Green) | 25mW |
| Output Power High (Red) | 38mW |
| Beam Divergence | 0.3mrad |
| Wavelength (Green) | 520nm |
| Wavelength (Red) | 640nm |
| NIR Aim Laser | |
| Safety Class (Low/High) | 1 / 3B |
| Output Power Low | 0.4mW |
| Output Power High | 25mW |
| Beam Divergence | 0.3mrad |
| Wavelength | 830nm |
| NIR Illuminator (Laser) | |
| Safety Class (Low/High) | 1 / 3B |
| Output Power Low | 7mW |
| Output Power High | >135mW |
| Beam Divergence | ~15-350mrad (≈1-20°) |
| Wavelength | 850nm |
| NIR Illuminator (LED Flood) | |
| Safety Class | 1 |
| Output Power | 35mW |
| Beam Divergence | 180° |
| Wavelength | 850nm |
Key Features
- Ultra-Lightweight & Balanced: Weighs under 6 oz to maintain weapon balance in high-mobility and CQB environments.
- All-in-One Laser Capability: Combines red or green VIS laser, IR aim laser, IR illuminator, and wide-angle NIR LED flood in one compact unit.
- Quick-Adjust Laser Intensity: Instantly adapt aiming or illumination power to match distance or lighting conditions.
- 180° Wide-Angle IR Flood: Integrated NIR LED provides full-scene visibility for confined spaces and room entries.
- Personalized Laser Control: VIS and CQB override buttons are user-configurable for instinctive activation under pressure.
- Independent IR Illuminator Tuning: Adjust beam divergence and location without affecting aiming lasers.
- Fast-Access Controls: Easy to use buttons and rotary dial ensure quick operation under stress.

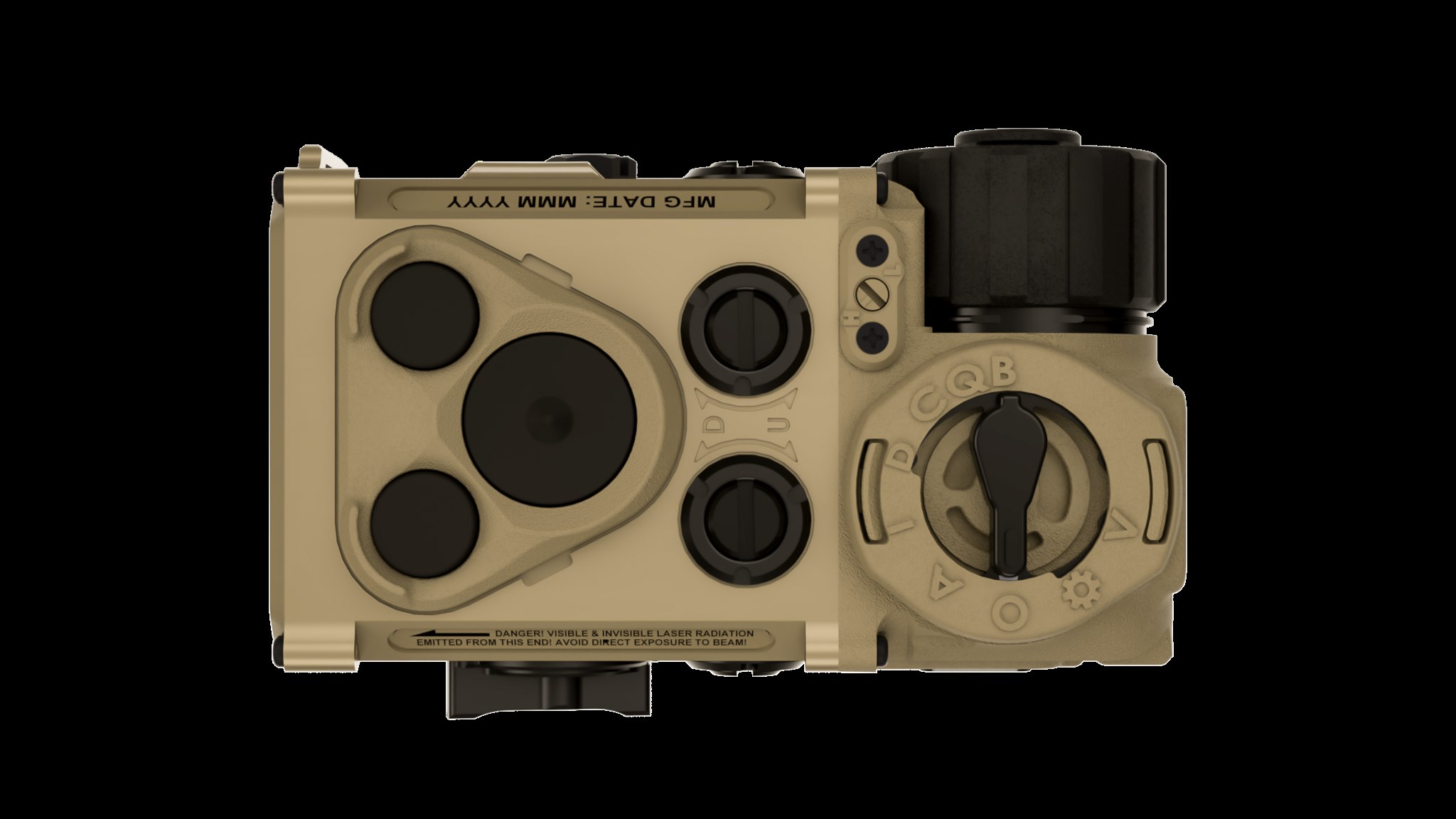

- Expanded Mode Selector: Seven-position dial includes open slots for future feature upgrades.

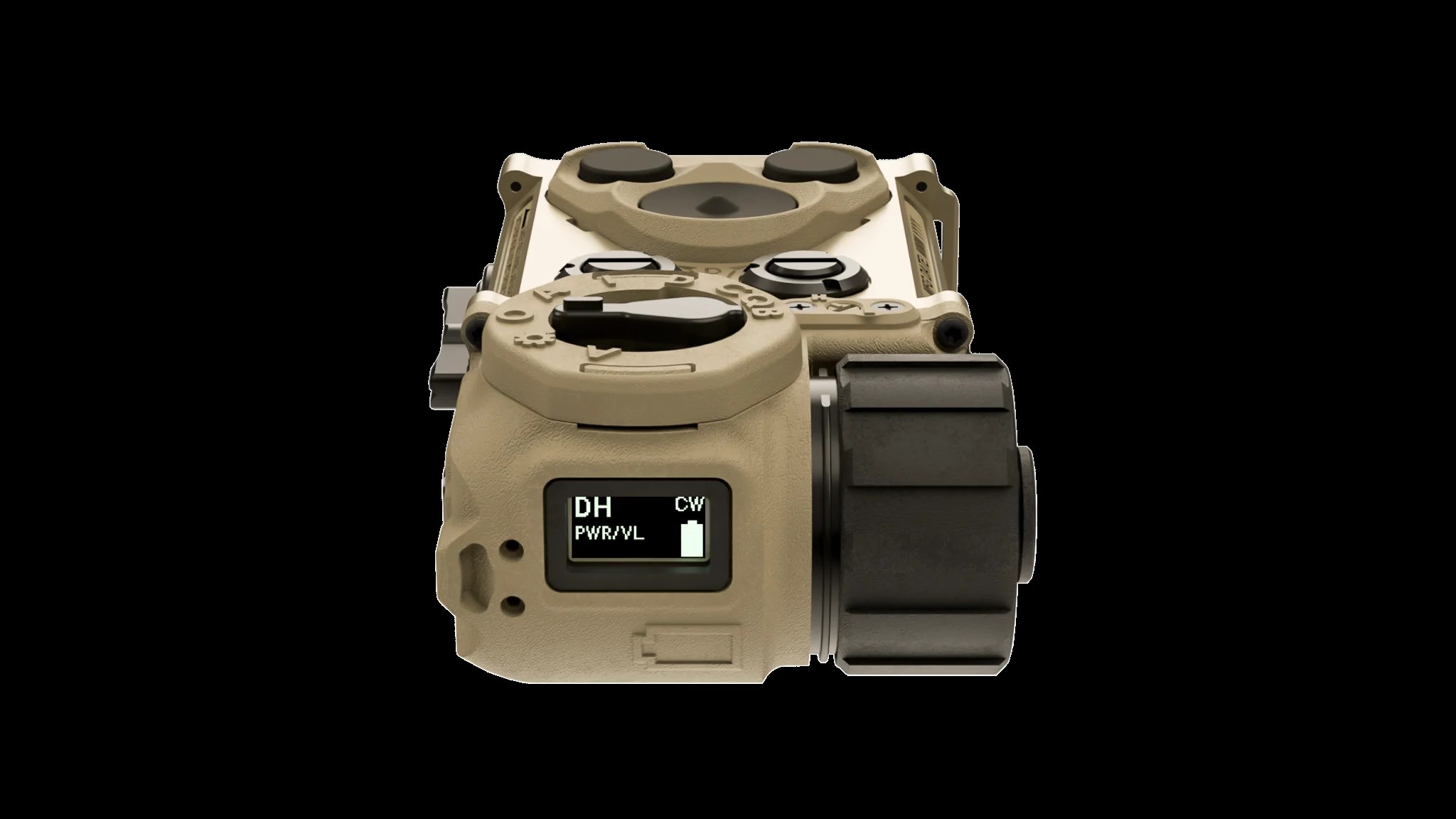

- OLED Display with Dimming: Manual brightness control and auto-dimming sensor for day/night adaptation. Display can be disabled during operation.
- Built for Glove Use: Aptly designed buttons for confident manipulation with gloves.
- Universal Mount Compatibility: MIL-STD-1913 rail grabber secures tightly to standard weapon platforms.
- Simple Power Source: Runs on a single CR123A battery for reliable field operation.
