Product Details

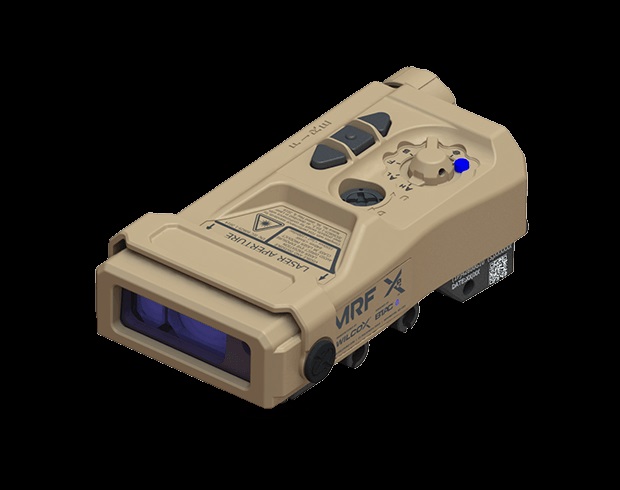

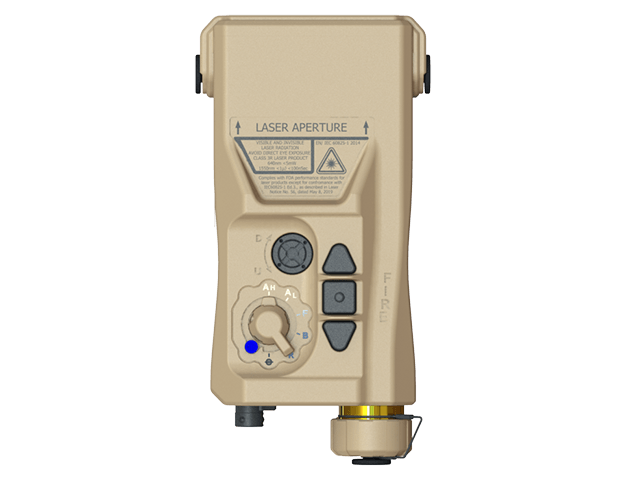

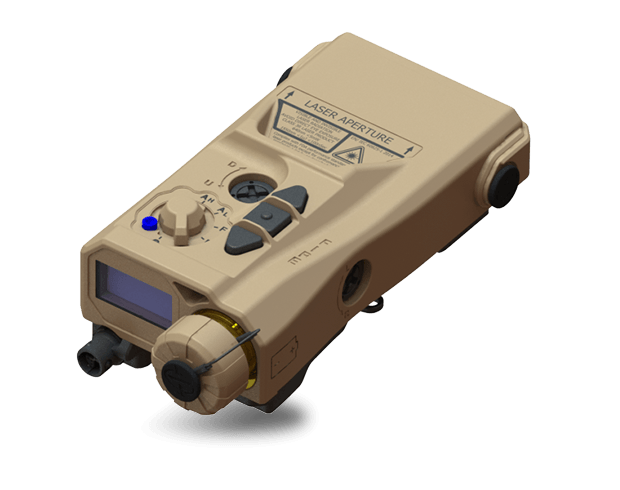

The Wilcox MRF Xe is a compact, low-profile laser range finder built for precision shooters who need accurate ranging and integrated ballistic solutions in a rugged package. It mounts securely to any Picatinny rail and uses a Class 3R laser for precise distance measurement. The system features onboard ballistic software that combines target distance, environmental data, and user-programmed weapon and ammunition profiles to deliver real-time firing solutions. A visible red laser is included for easy boresighting, and the unit maintains solid zero thanks to its stable optical design. Controls are streamlined and ambidextrous, with a top-mounted mode selector and fire button for intuitive operation. It also supports remote accessories like Wilcox ERGOCTO keypads and grips for flexible activation. With built-in connectivity, users can input and manage ballistic data through a paired mobile device, making the MRF Xe a highly capable and adaptable tool for long-range engagements. ---Characteristics (Low Power)
| Battery Life | Over 8 Hrs | |
| Immersion | 1 meter for 1 hour | |
| Boresight Retention | <.5 mrad | |
| Laser Type | Diode Based Laser Transmitter & APD Receiver | |
| Laser Classification/Wavelength | Class 1/1.55um | |
| Beam Divergence | < 1 mrad | |
| Minimum Range | 5 meters | |
| Ranging Operation at 24C | >1800 ranges | |
| Max Range @ 30% Reflectivity | 2000 meters Man Size Target | |
| Max Range @ 30% Reflectivity | 3000 meters NATO Size Target | |
| Laser Type/Wavelength/Power* | Red Visible Laser/640nm/< 5mW | |
Key Features
- One optical bench houses the red VIS laser and LRF
- Optical bench is aligned to weapon by one windage and one elevation adjustment
- Powered by one (1) CR123 3V battery
- Mounts to any 1913 Picatinny rail secured by 2 shock nuts
- Multi-function keypad provide flexibility in programing custom options
- Five (5) selectable pulse modes on VIS laser settings
- Selectable or auto adjustable laser brightness settings
- Security tethered loop tie down
- Bluetooth interface provides key information on mobile devices and connectivity to auxiliary devices
- User interchangeable modular visor/laser safety cover
- On-board ballistic computer calculates temperature, pressure, humidity, inclination, cant and heading
- Eye safe LRF operation measures 2000 meters to a man-sized target
- Large OLED display outputs ballistic solution in MIL, MOA & INCHES
- Programmable database stores up to 30 rifle and ammo profiles
- Remote port accepts Wilcox line of ERGOCTO® Xe Activation Keypads and ERGOCTO Xe Control Grips (optional)
